RSGD4045F0VX200

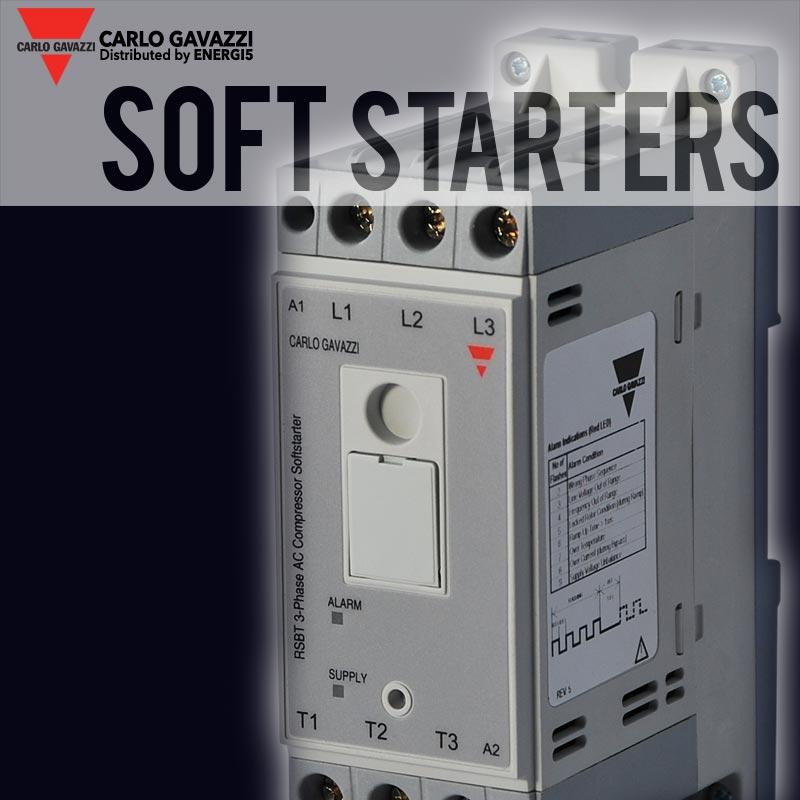

Soft starter for 3-phase induction motors.
DATASHEET
USER MANUAL
CE CERTIFICATION
UL CERTIFICATION
CCC CERTIFICATION
EAC CERTIFICATE
CAD
��
| SYSTEM | Soft Starter |
|---|---|
| LOAD | Phase 3 |
| HOUSING WIDTH | >22.5mm to 45mm |
| MOTOR RATING | >20kW to 30kW |
| OPERATIONAL VOLTAGE | Up to 480VAC |
| LOAD CURRENT | >32A to 50A |
| CONTROLLED PHASES | 2-Phase |
| MAX NUMBER OF STATS PER HOUR | Up to 10 |
| COMMUNICATION | N/A |
| LOAD | Soft starter for 3-phase induction motors |
|---|---|
| LOAD CURRENT | 45A AC |
| MAX MOTOR RATING | 22 kW |
| OPERATIONAL VOLTAGE | 187 - 440V ACrms |
| DIMENSIONS | 45 x 130 x 125 mm |
| CONTROLLED PHASES | 2-Phase |
| MAX NUMBER OF STATS PER HOUR | 10 |
Type: Soft Starter
