CARLO GAVAZZI MOFT20-M14-8

Photoelectric Sensor - Through-beam for Separate Amplifier

Overview

Carlo Gavazzi MOFT20-M14-8 Small through beam photoelectric switch. Range up to 50 m. 3 beam angles. Waterproof, for dirty environment, i.e. water, dust, steam etc. To be used with amplifiers series S142. - S143. 15 m shielded cable, PVC. Ø 10 x 42 mm polycarbonate or M12 or M14 stainless steel housing. Straight optical axis.

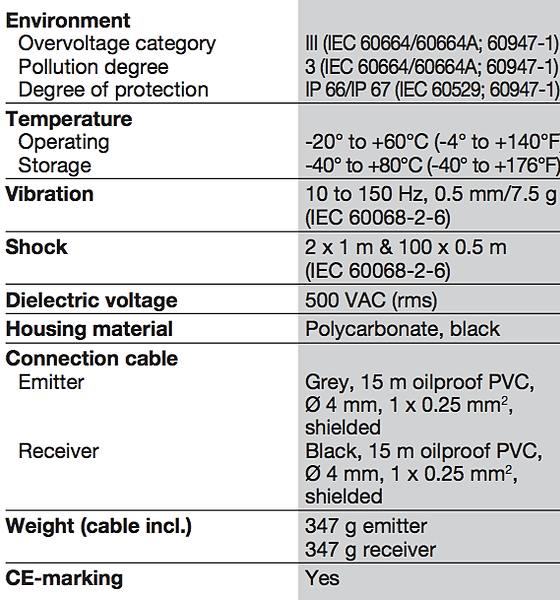

Main Technical Specs

• Built-in lens: 2°, 5° or 8°

• Range: 20 m or 50 m

• Modulated infrared light

• High immunity to ambient light

• For amplifier series S142. and S143.

• Degree of protection IP 66/IP 67

• For harsh environment

• High penetration power

• 15 m shielded PVC cable

• Ø 10 mm polycarbonate housing or M12 or M14 stainless steel

Download

Learn more about Carlo Gavazzi photoelectric sensor MOFT20-M14-8. Product description, applications, functions, power supply, communication, degree of protection, operating temperature, humidity, immunity, emission, led indications, housing, dimensions, weight, wiring, connections and installation. You can also, find all compatibility and conformity information such as CE-marking and Approvals.
